Quectel BG77 Cat M1/NB2 module
Overview

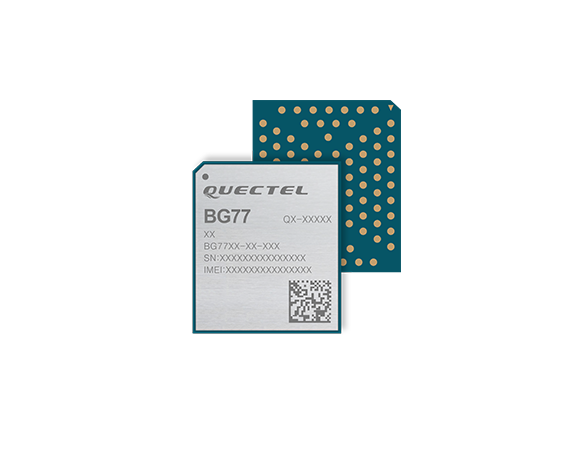

The BG77 is an ultra-compact LPWA module supporting LTE Cat M1, LTE Cat NB2 and integrated GNSS. It is fully compliant with 3GPP Rel-14 specification and provides maximum data rates of 588 kbps downlink and 1119 kbps uplink. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.
Product Specifications Quectel BG77
Product
|
|
| Part Number | BG77 |
| Manufacturer | Quectel |
| Description | NB-IoT / LTE-M Module with integrated GNSS functionality |
General |
|
| 3GPP Release | Release 14 |
| Cellular Standards | LTE-M (Cat M1), NB-IoT (Cat NB2) |
| Dimensions | 14.9 × 12.9 × 1.7 mm |
| GNSS | Yes |
| GNSS Band | GPS, GLONASS, BeiDou/Galileo, QZSS |
| Interface | USB 2.0, UART, PCM, I2C, ADC, GPIO |
| LTE Bands |
NB-IoT (Cat NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 LTE-M (Cat M2) : B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
|
| Package | LGA |
| Package Type | Surface Mount |
| Region | Global |
| Currents | NB-IoT & LTE-M PSM Current Avg. 3.44 µA / 0.67 mA @ eDRX LTE-M = 81.92 s / 0.66 mA @ eDRX NB-IoT= 81.92 s |
| SMS | Yes |
| Technology | LTE-M, NB-IoT |
| Voice | Yes |
| Data Rate | DL: 127 kbps NB-IoT (Cat NB2), 588 kbps LTE-M (Cat M1) UL: 158.5 kbps NB-IoT (Cat NB2), 1119 kbps NB-IoT (Cat M1) |
| Operating Temperature | -35 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Supply Voltage | 2.5V – 4.8V |
| Transmitted Power | 21 dBm |
| Certifications |
Vodafone*/Deutsche Telekom* (Europe), Verizon/ AT&T/ Sprint/T-Mobile* (America), China Telecom*/China Mobile*/China Unicom* (China) Regulatory: GCF (Global), CE (Europe), PTCRB (North America), FCC (America), IC (Canada), SRRC*/NAL*/CCC* (China), KC* (South Korea). NCC* (Taiwan, China), JATE/TELEC (Japan), RCM (Australia/New Zealand), NBTC* (Thailand) Others: RoHS |
* Pending
