Quectel BG770 NB-IoT/LTE-M module
NB-IoT/LTE-M module with integrated GNSS functionality.
Overview
The BG770 is an LTE-M / NB-IoT Module with integrated GNSS functionality. It is fully compliant with 3GPP Rel. 14 specification and provides a downlink data rate of up to 588 Kbps and an uplink data rate of up to 1119 Kbps. The module leverages integrated RAM/Flash as well as a ARM Cortex M4 MCU for ultra-low power consumption.
The BG770 is available in a 14.9 × 12.9 × 1.9 mm LGA package and is suitable for a wide range of IoT / M2M applications such as wireless POS, smart metering, tracking, wearable devices, and etc. The BG770 offers excellent low currents in PSM and eRDX. The voltage range of =< 3.3 volts is perfect for operating the NB-IoT / LTE-M module with the MCU from the same supply voltage.
Product Specifications Quectel BG770
Product
|
|
| Part Number | BG770 |
| Manufacturer | Quectel |
| Description | NB-IoT / LTE-M Module with integrated GNSS functionality |
General |
|
| 3GPP Release | Release 14 |
| Cellular Standards | LTE-M (Cat M1), NB-IoT (Cat NB2) |

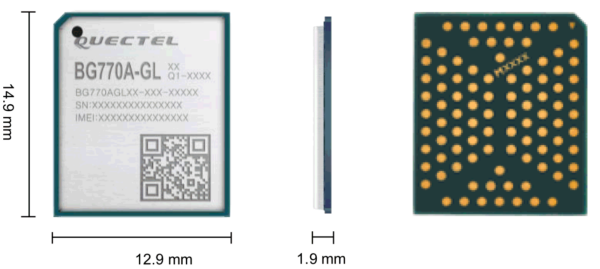

| Dimensions | 14.9 × 12.9 × 1.9 mm |
| GNSS | Yes |
| GNSS Band | GPS, GLONASS |
| Interface | USB 2.0, UART, PCM, I2C, ADC, GPIO |
| LTE Bands | NB-IoT (Cat NB2) B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B6 LTE-M (Cat M2) B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66) |
| Package | LGA |
| Package Type | Surface Mount |
| Region | Global |
| Currents | NB-IoT & LTE-M PSM Current Avg. 3.44 µA / 14 uA @ eDRX LTE-M = 81.92 s / 14 uA @ eDRX NB-IoT= 81.92 s |
| SMS | Yes |
| Technology | LTE-M, NB-IoT |
| Voice | Yes |
| Downlink Data Rate | DL: 127 kbps NB-IoT (Cat NB2), 588 kbps LTE-M (Cat M1) UL: 158.5 kbps NB-IoT (Cat NB2), 1119 kbps NB-IoT (Cat M1) |
| Operating Temperature | -35 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Supply Voltage | VBAT_BB: 2.2–4.35 V VBAT_RF: 3.1–4.2 V |
| Transmitted Power | 23 dBm |
| Certifications | Planned: GCF (Global) / CE (Europe) /FCC / PTCRB (North America) / IC (Canada) / KC (South Korea) / NCC (Taiwan) / JATE / TELEC (Japan) / RCM (Australia) / NBTC (Thailand) / IMDA (Singapore)/ T-Mobile (USA)/AT&T(USA)/Vodafone(Global)/ SRRC/NAL/CCC (China) |
