ETM770 Network Monitoring Tool

ETM NB-IoT, LTE-M, GPRS Cellular Network Monitoring Tool

Functions

  • Scanning for signal strength
  • Identifying network operators
  • FME and SMA antenna adapter
  • USB interface
  • Send PING packets over GPRS/UMTS/LTE to a server address
  • Send data to ETM WEB Office (EWO)
  • Price €790.00

Specifications

  • Rechargeable battery (LiPo)
  • -20 ° C to +55 ° C
  • Measurements: 115 x 69 x 28 mm
  • Weight 177 g

Typical Applications

  • Ensure good mobile coverage for remote mobile devices
  • Operator selection with the best coverage
  • Optimizing battery life for remote devices with positioning
  • Reading the information on different network services such as Chann, RS, dBm, the LAC and Cell



Overview

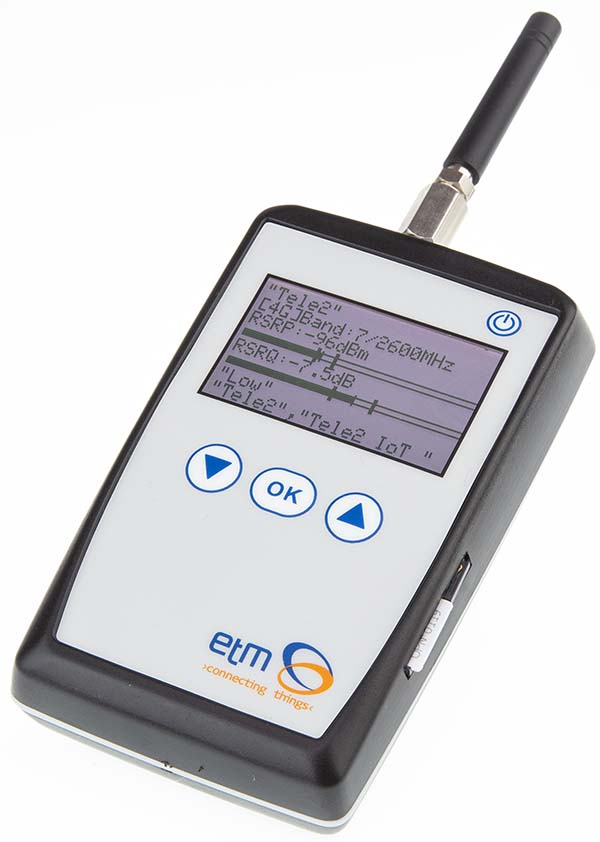

ETM770 is a handheld battery powered signal strength meter used in the field to measure the signal quality of all mobile operators available in 2G, 3G, 4G, Cat M1, NB-IoT (GSM, UMTS and LTE) bands, depending on the model selected.

ETM770-10 version (OLED Screen):

  • Sixteen Bands LTE FDD CatNB2/CatM1: B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B28/B66/B71/B85
  • Quad Band GSM: 850, 900, 1800 and 1900 MHz

ETM770-7 version (OLED Screen):

  • Twelve Bands FDD-LTE: 700, 800, 850, 900, 1700/2100 (AWS), 1800, 1900, 2100, 2600 MHz (bands 1, 2, 3, 4, 5, 7, 8, 12, 18, 19,20, 28)
  • Seven Bands UMTS (WCDMA/FDD): 800, 850, 900, 1700/2100 (AWS), 1800, 1900 and 2100 MHz (bands 1, 2, 4, 5, 8, 9, 19)
  • Quad Band GSM: 850, 900, 1800 and 1900 MHz

In order for communication via the mobile network to function satisfactorily it is required that the signal quality at the site is adequate and stable. With ETM770 you only need a SIM card to be able to view the signal strength of all available operators. You can also do test broadcasts to test the GPRS/UMTS/LTE connection. ETM770 is an ideal tool for field installations in order to verify and optimize the signal quality and secure wireless communication between applications and systems.

Downloads



User Manual The ETM770 User Manual
Configuration Tool Configuration tool for the ETM770-6 version
Datasheet Datasheet for the ETM770
Configuration Tool Configuration tool for the ETM770-8 version

Instructional Video

A short instructional video for the ETM770 Network monitoring tool
