Balanced and UFL Calibration Kit

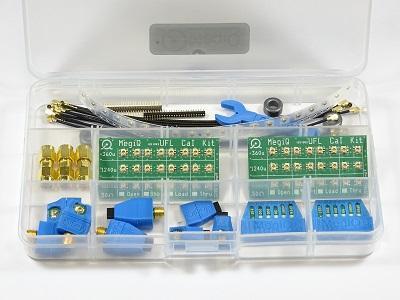

MegiQ Balanced and UFL Calibration Kit


  • Facilitates balanced and UFL VNA measurements
  • Includes in-depth tutorial
  • Dual UFL OSLT Calibration Kits for 3 PCB layer thicknesses
  • Balanced OSLT Calibration Kits
  • SMA-UFL adapters
  • SMA-Balanced adapters
  • UFL-Balanced adapters
  • UFL-Differential adapter
  • UFL Cables
  • UFL Sockets for measuring
  • PIN headers for measuring
  • Use with any VNA
  • Use UFL up to 6GHz, Balanced up to 3GHz
  • €465.00


The Balanced Calibration Kit is an interface kit using U.FL connectors for balanced VNA measurements. It contains SMA-UFL adapters and several adapters from SMA and UFL to balanced pinheaders.

The UFL connector was introduced by Hirose as the U.FL connector and became very popular for connecting RF signals in consumer electronics. There are several varieties from other manufacturors and are also known as UMC or UMCC connectors. The connectors are much better suited to the small size of IoT PCBs and have a much smaller effect on the ground properties of the device.  Any mismatches are calibrated away during the Open-Short-Load calibration.

The UFL calibration kits provides a calibration for UFL footprints for different print stacks (layer thickness). Since it contains a double set of impedances, a full 2-port calibration can be performed in 4 steps instead of 8.

The balanced interface has an Open-Short-Load calibration kit using pin-headers. When the same pin-headers are used for the measurement it will be calibrated at the tip of the pins.

The kit includes UFL cables and a sampling of UFL sockets and pin-headers for use during the measurements.

This Balanced Calibration Kit allows the measurement of balanced antennas, strip lines, transceiver chip impedances etc.



CAL-UFL-BAL User guide for the UFL and balancd calibration kit
